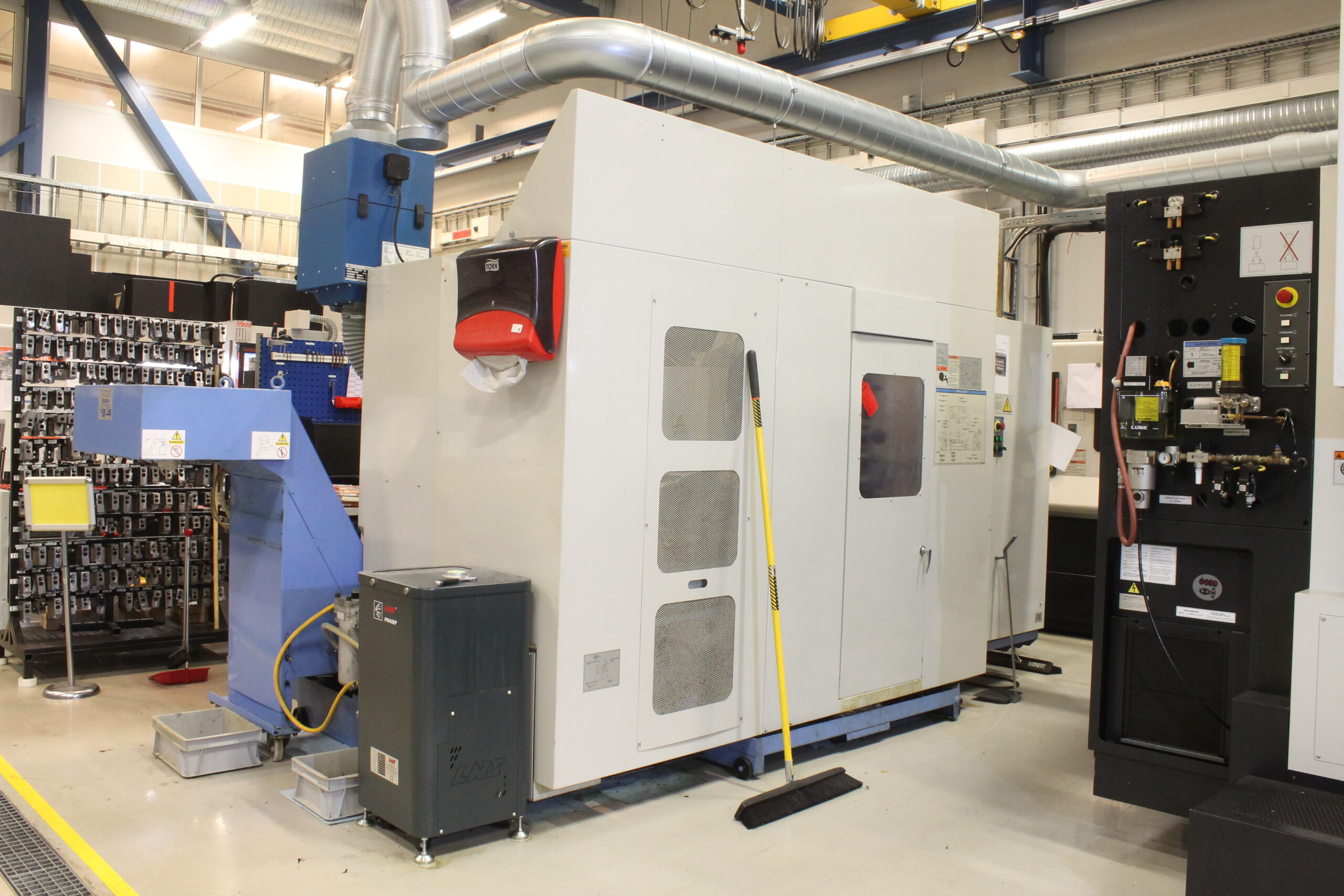

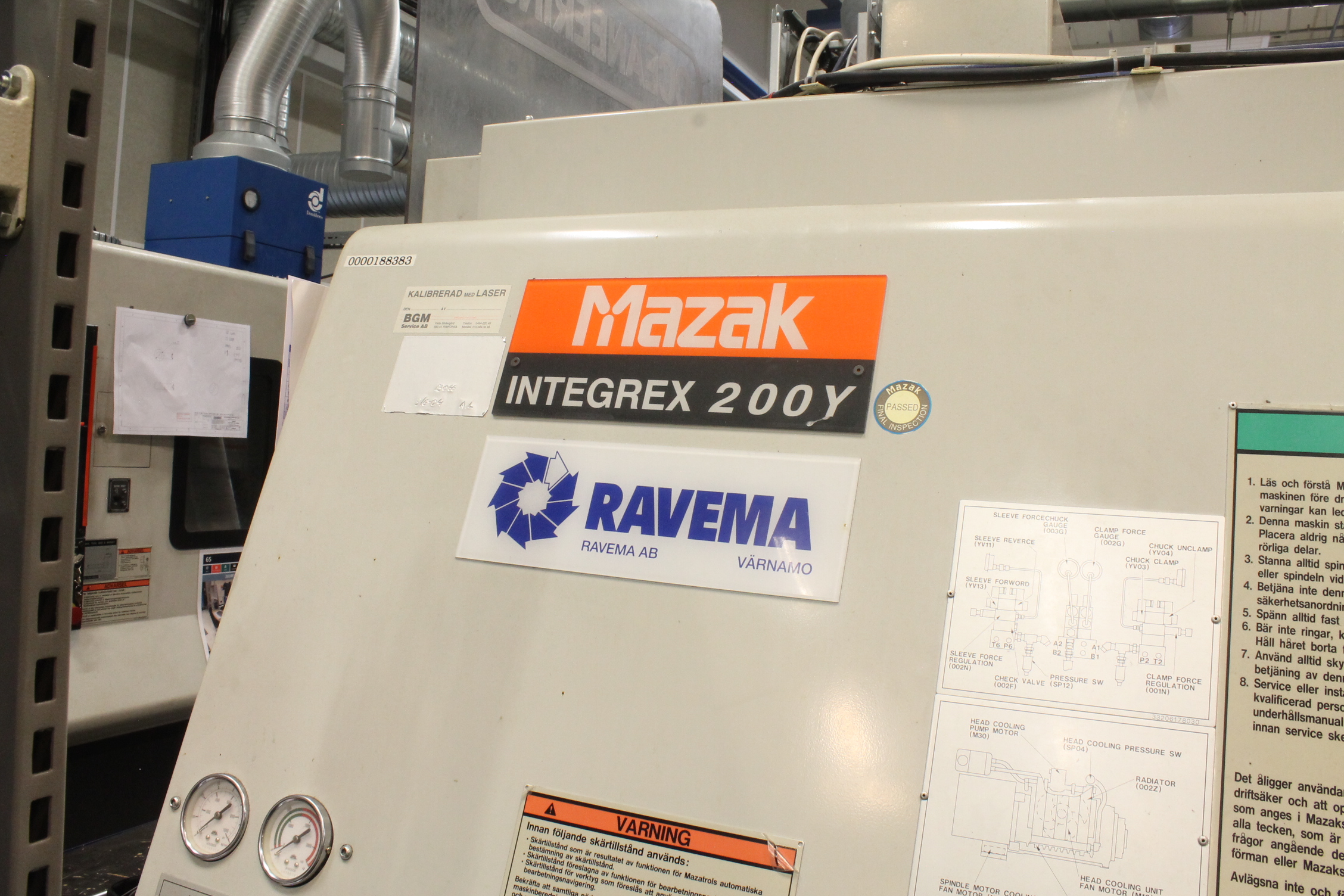

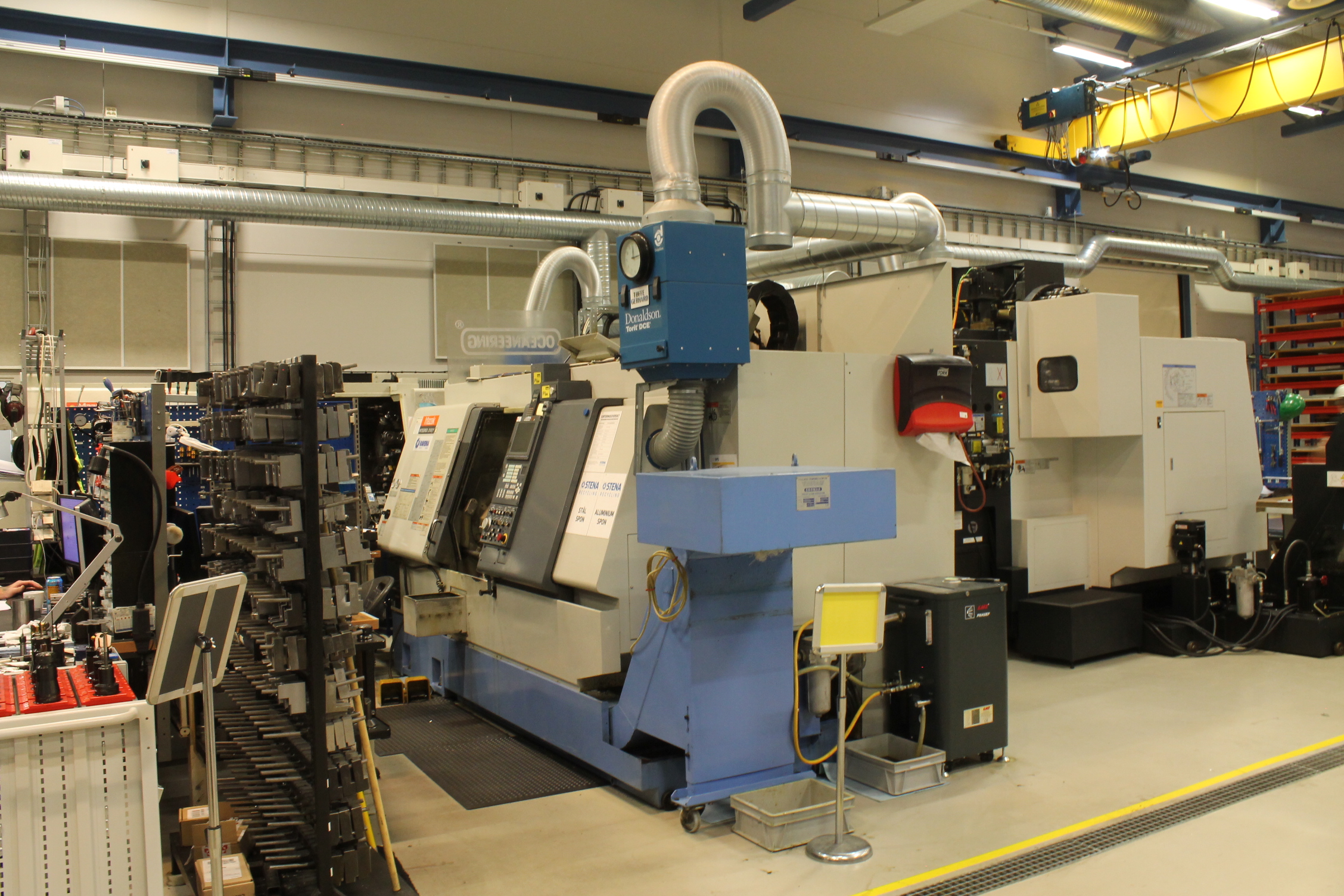

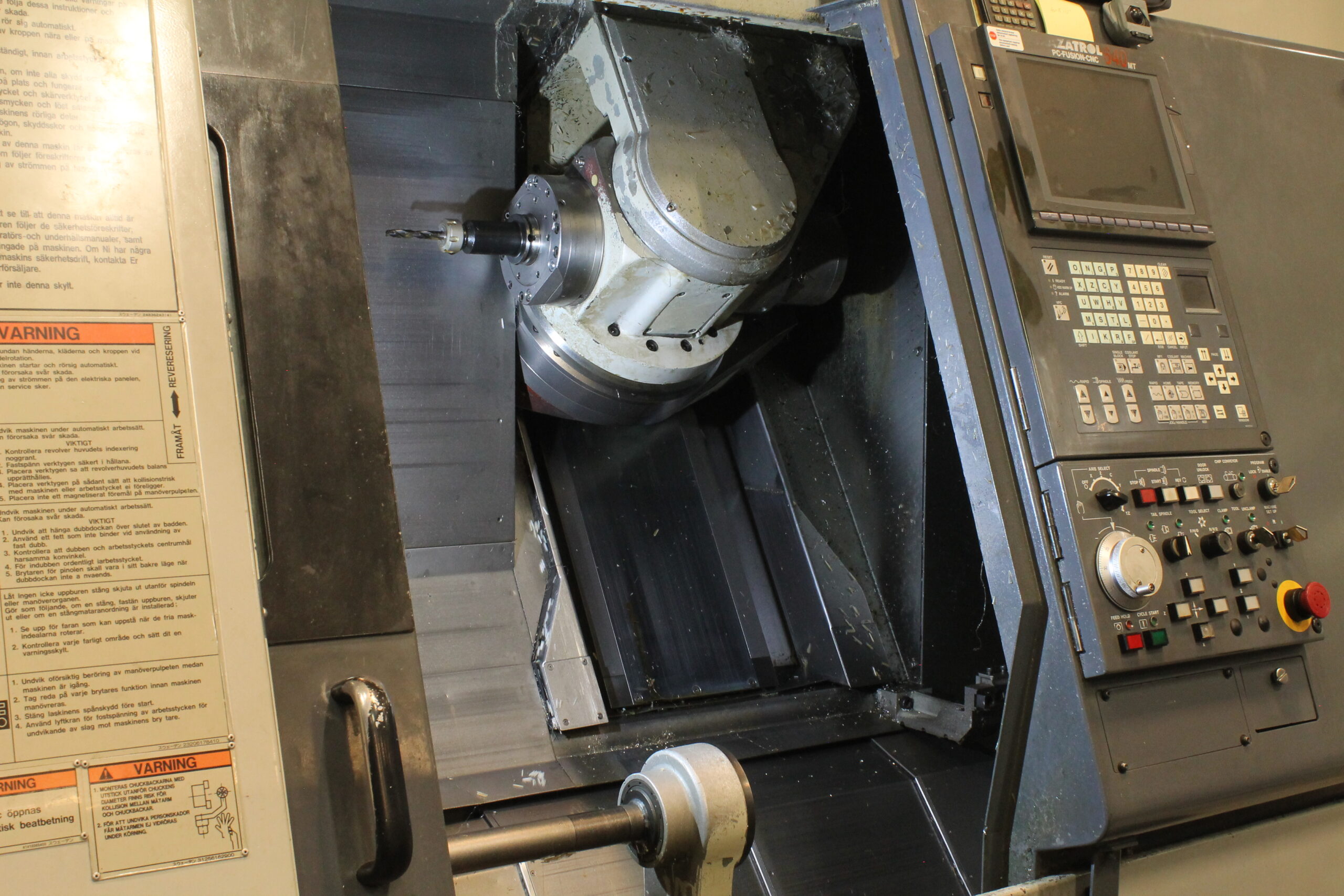

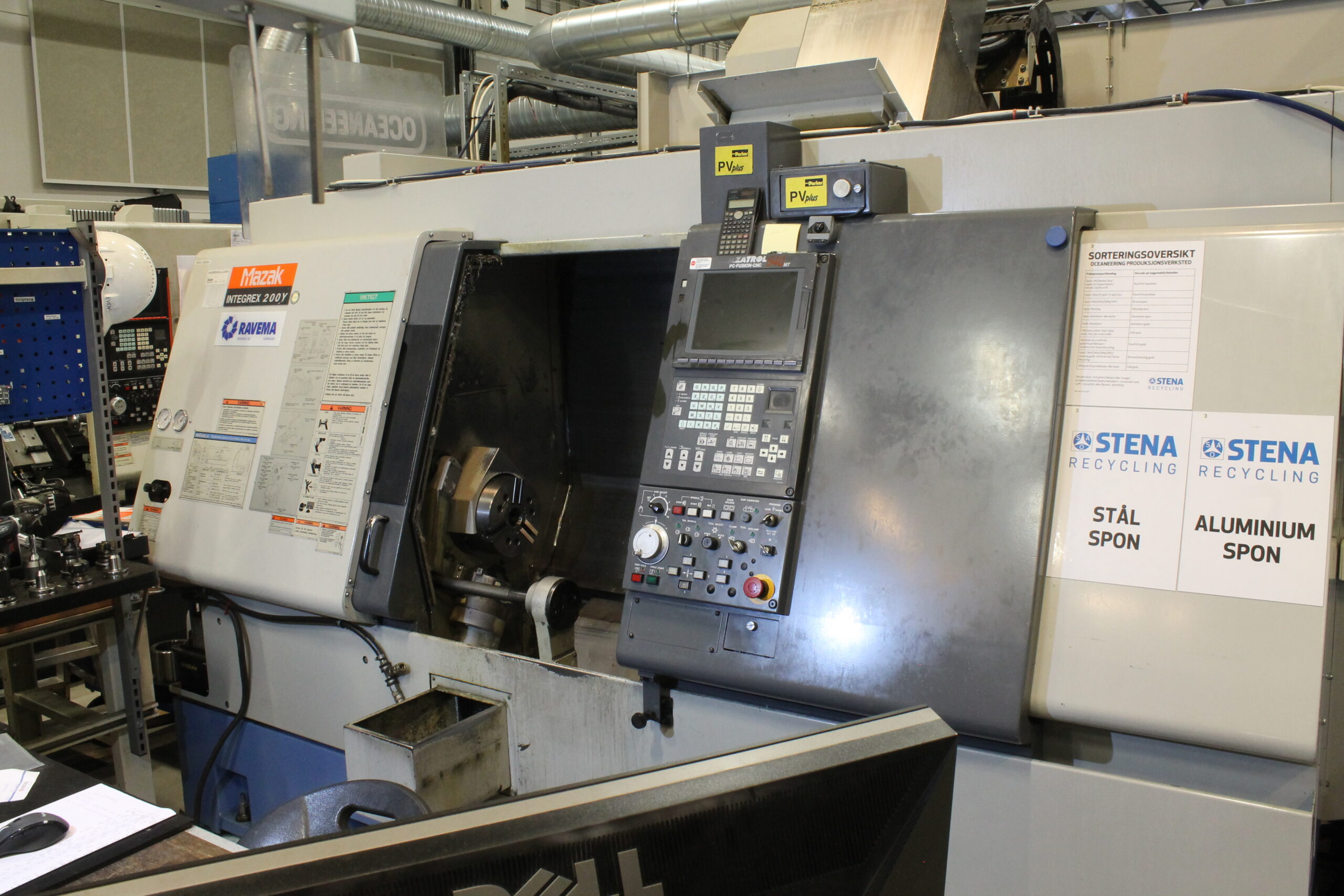

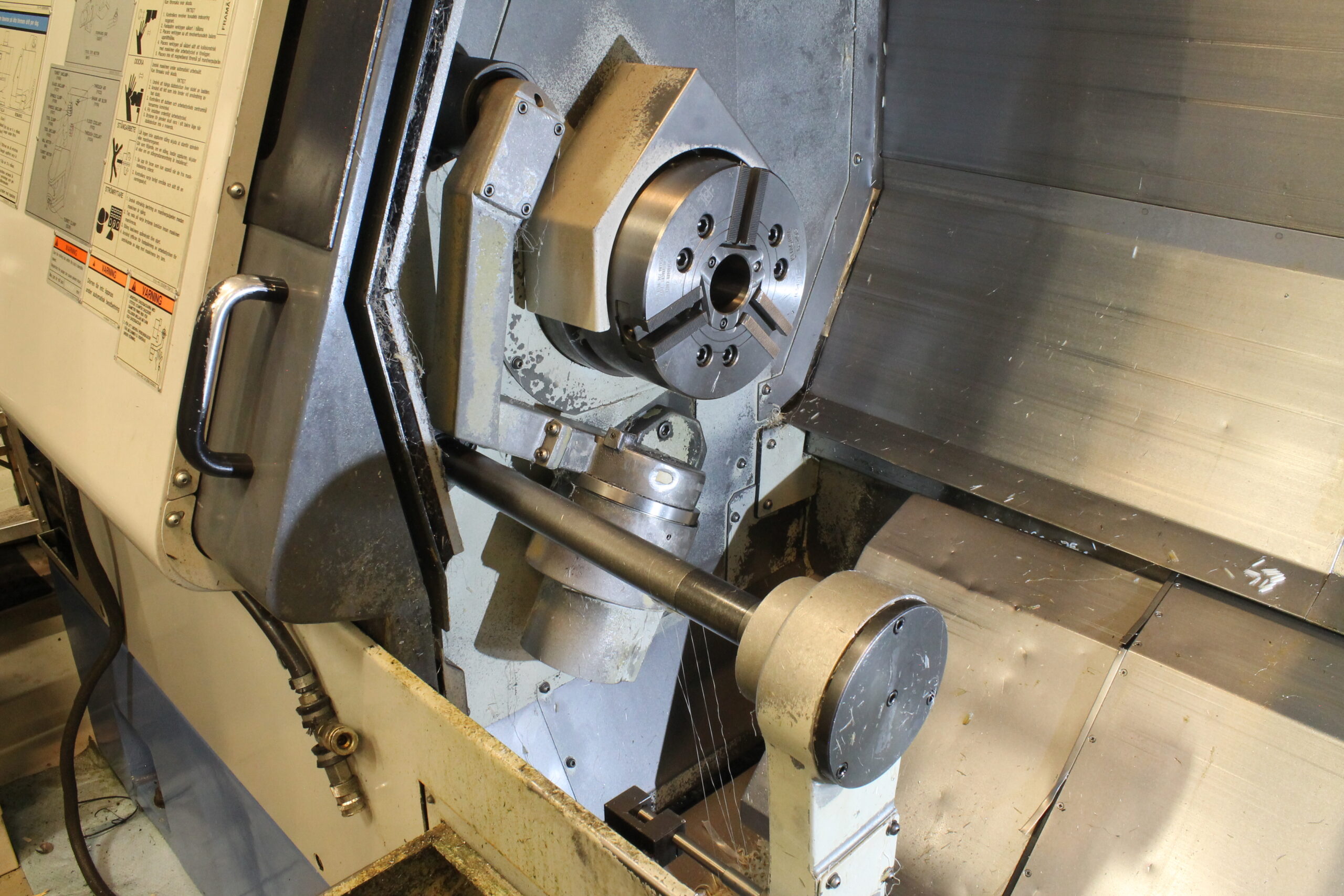

Mazak Integrex 200Y turning center
Generelt:
-Kr. 190.000,- +mva eller bud
-Produksjonsdato: November – 1998
-Arbeidstimer: 40.382t (iht. Servicerapport 10/08-2021)
-Jevnlig vedlikeholdt, dokumentert fra 2016 til 2021
-Driftsstans etter forrige service, August 2021 pga ukjent feilkode. Ikke lokalisert.
-Mangler parameter, trolig pga lav eller null batteri spenning etter mer en 2-års drift-stans
-Lokalisert på Forus i Sandnes kommune
Tekniske spesifikasjoner:
-3-Fase, 200vac @ 144A. Tilhørende 400v – 200v transformator medfølger
-LBH: Ca.350x210x250cm
-Nettovekt: 5900kg
-Passer KM63 verktøy-holdere
-Spindel for roterende verktøy: 15-6.000rpm @ 7,5kw
-Hovudspindel: 35-5.000rpm @ 22kw
-Spindeborring hovudspindel: 61mm
-Vandring X-akse: 530mm
-Vandring Z-akse: 1065mm
-Vandring Y-akse: +/-70mm

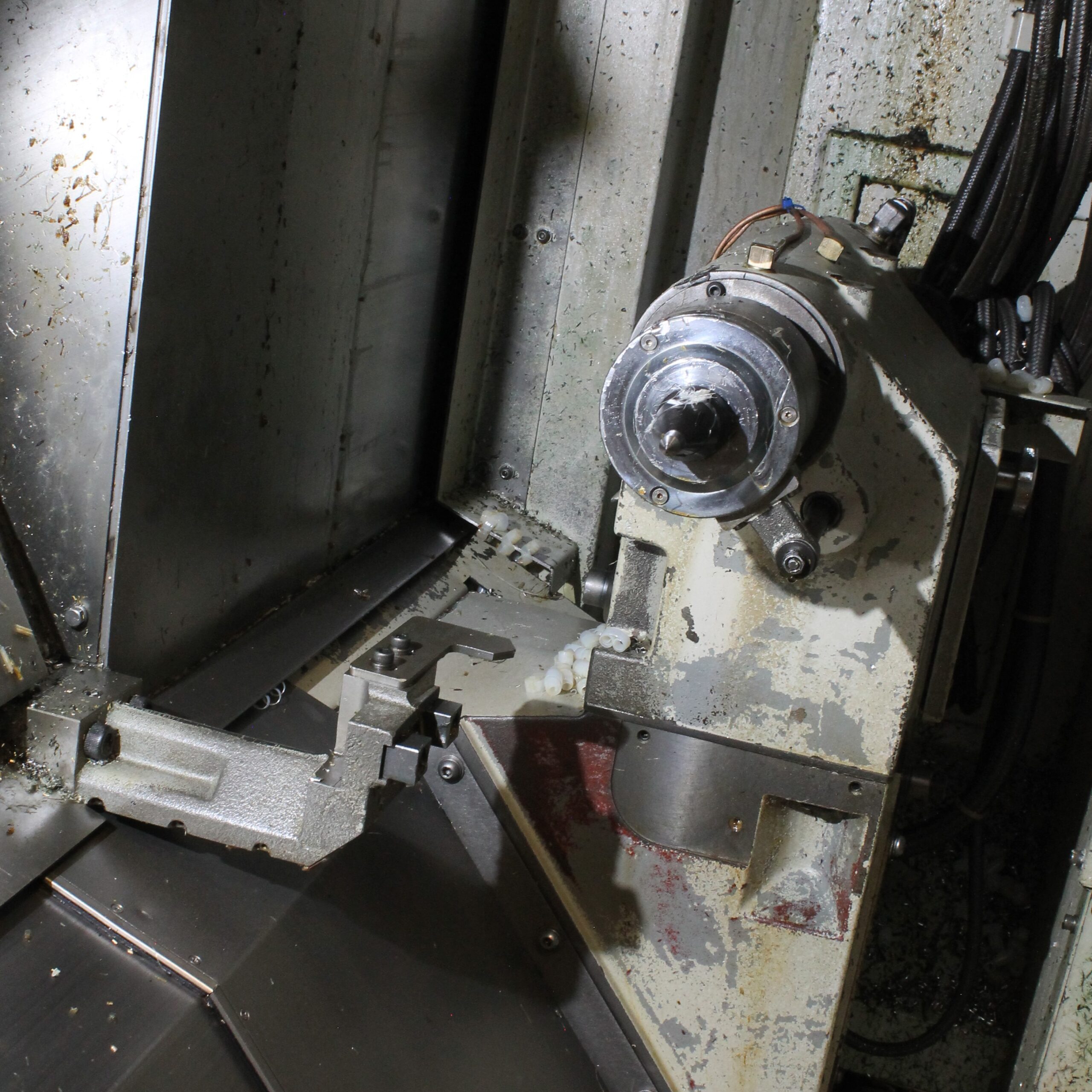

-Vandring bakdokke: 870mm

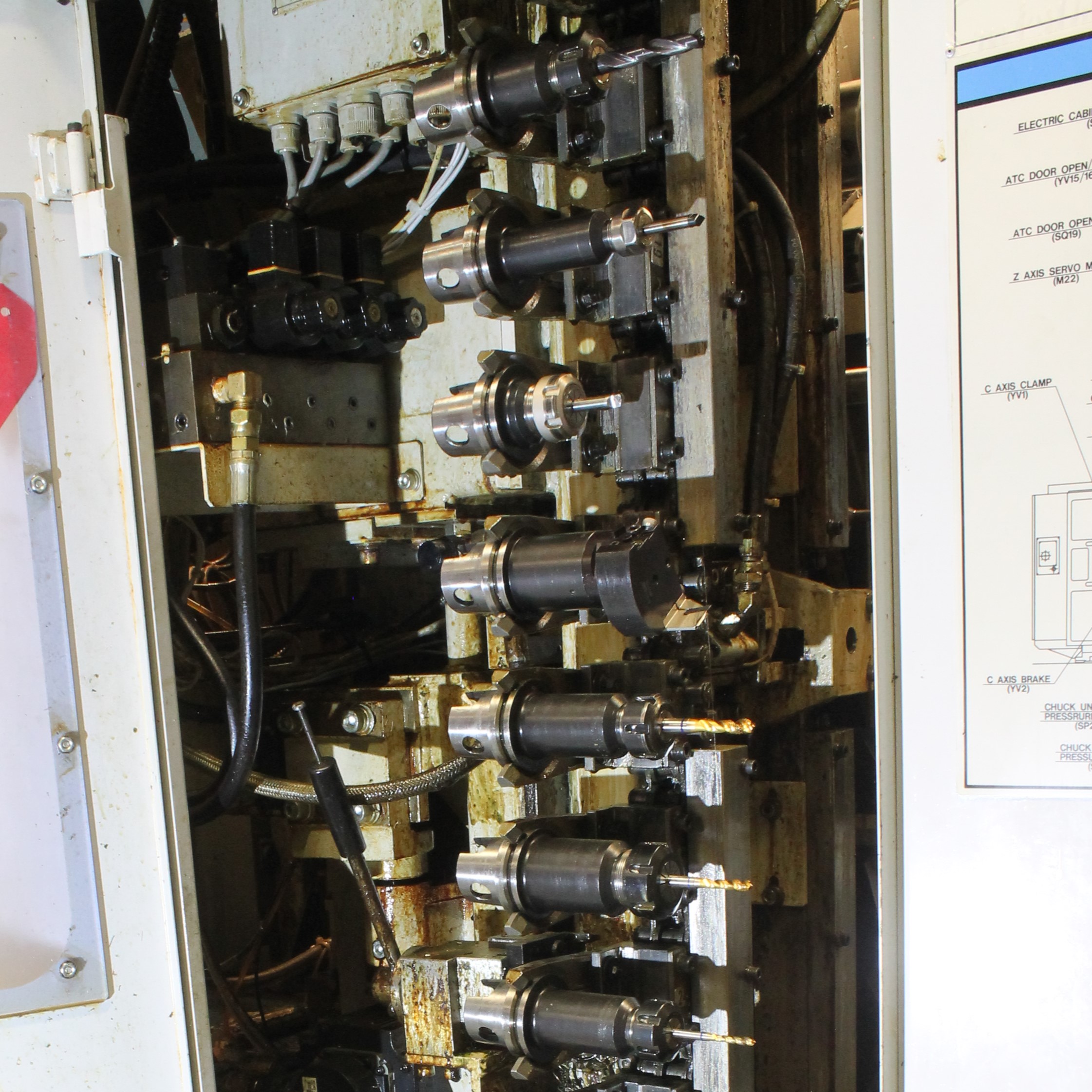

-Magasin kapasitet: 40-holdere
Utstyr:
-Kitagawa 8-208 dreiechuck
-147x sett bakker til chuck
-87x KM63 Verktøyholdere, uten verktøy
-200vac – 400vac transformator
-Cromar S176240A Swarf conveyor
-Mazatrol Fusion 640MT (mastercam kompatibilitet)
-Oljeutskiller medfølger ikke
Mazak Integrex 200Y turning center
Generally:
-Price on request
-Production date: November - 1998

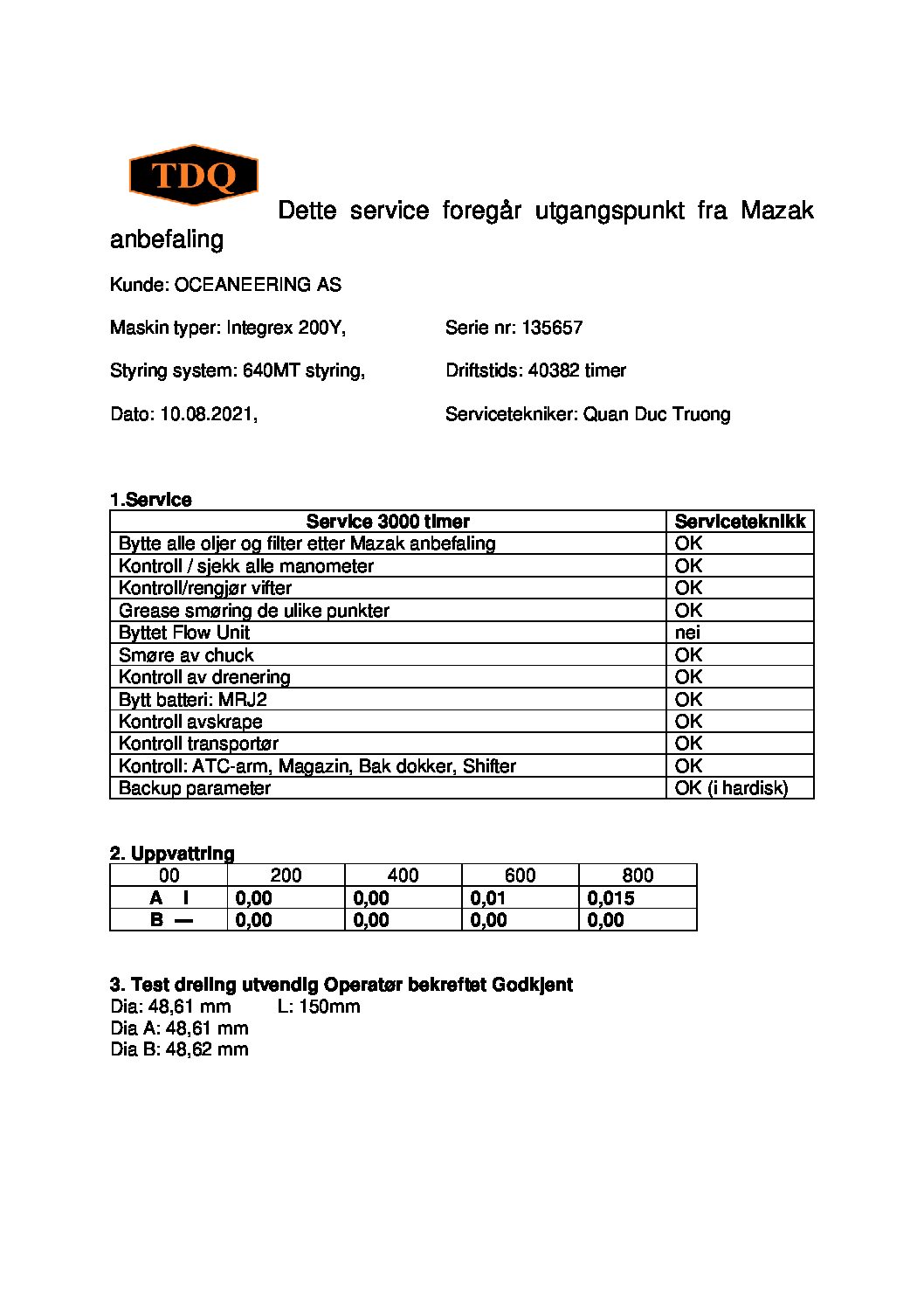

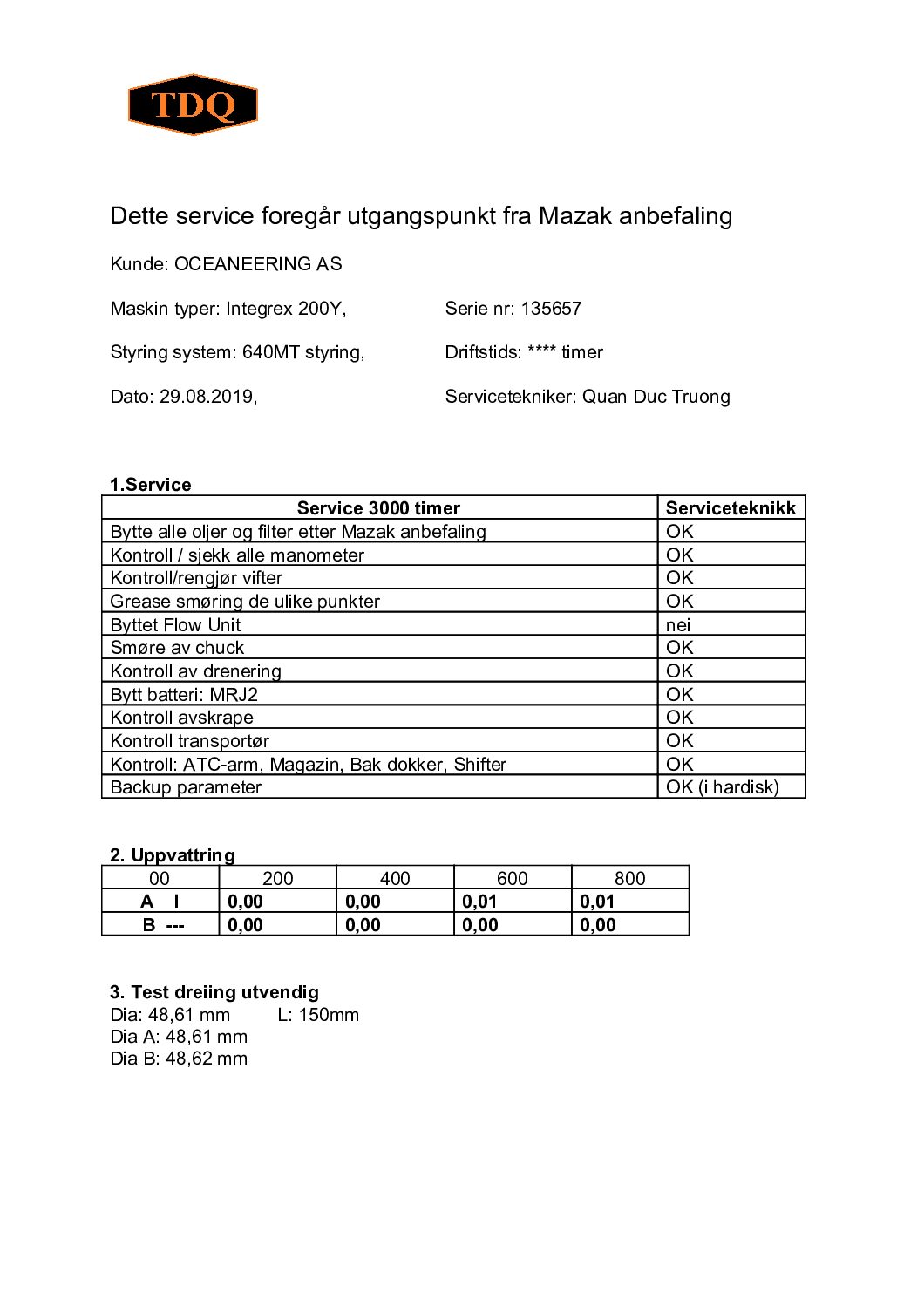

-Working hours: 40,382h (according to Service report 10/08-2021)

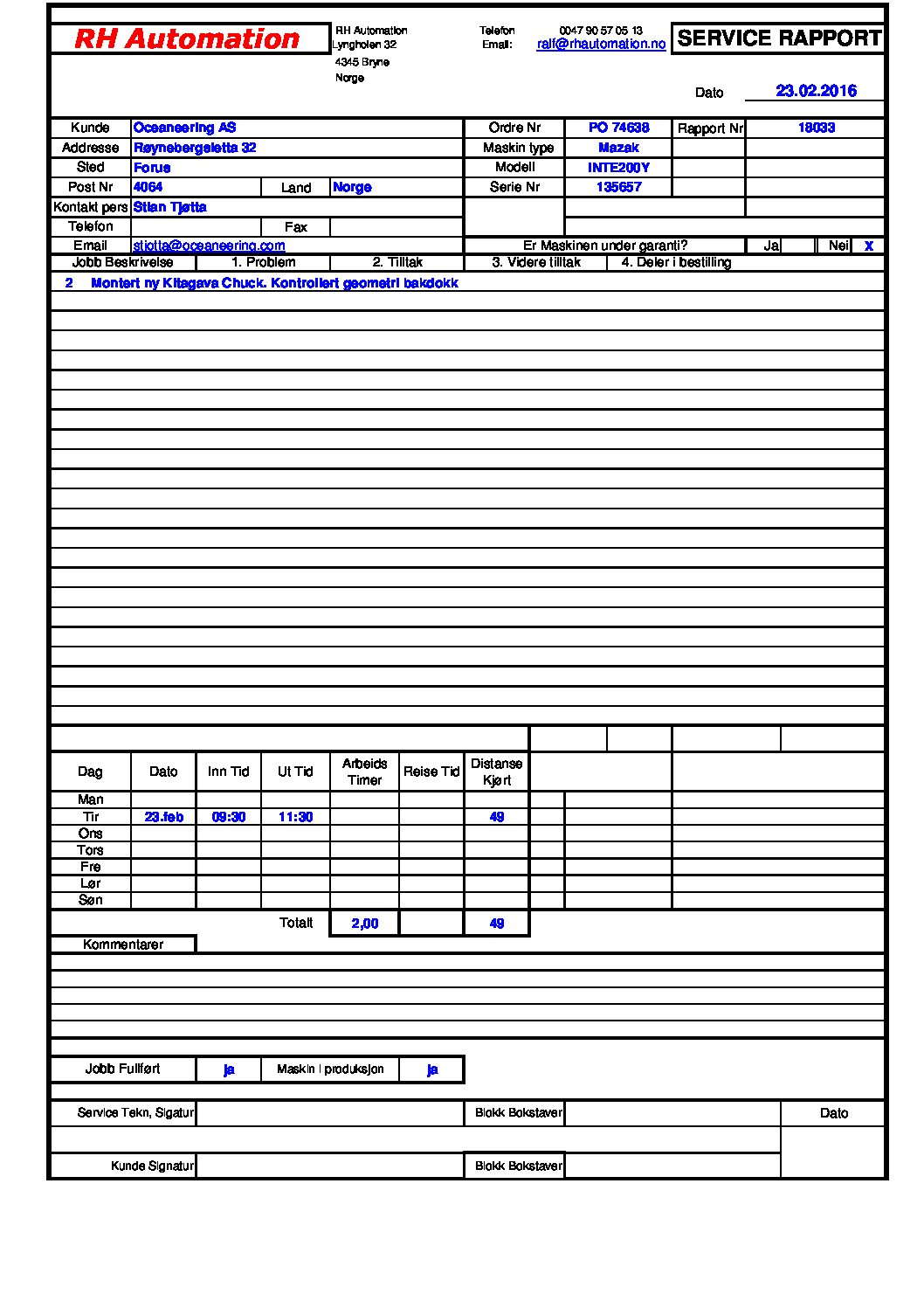

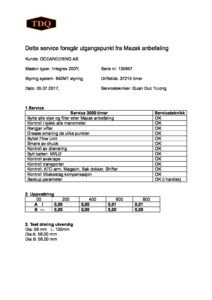

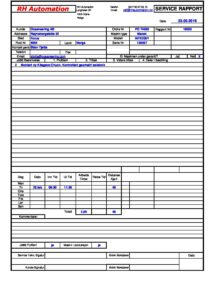

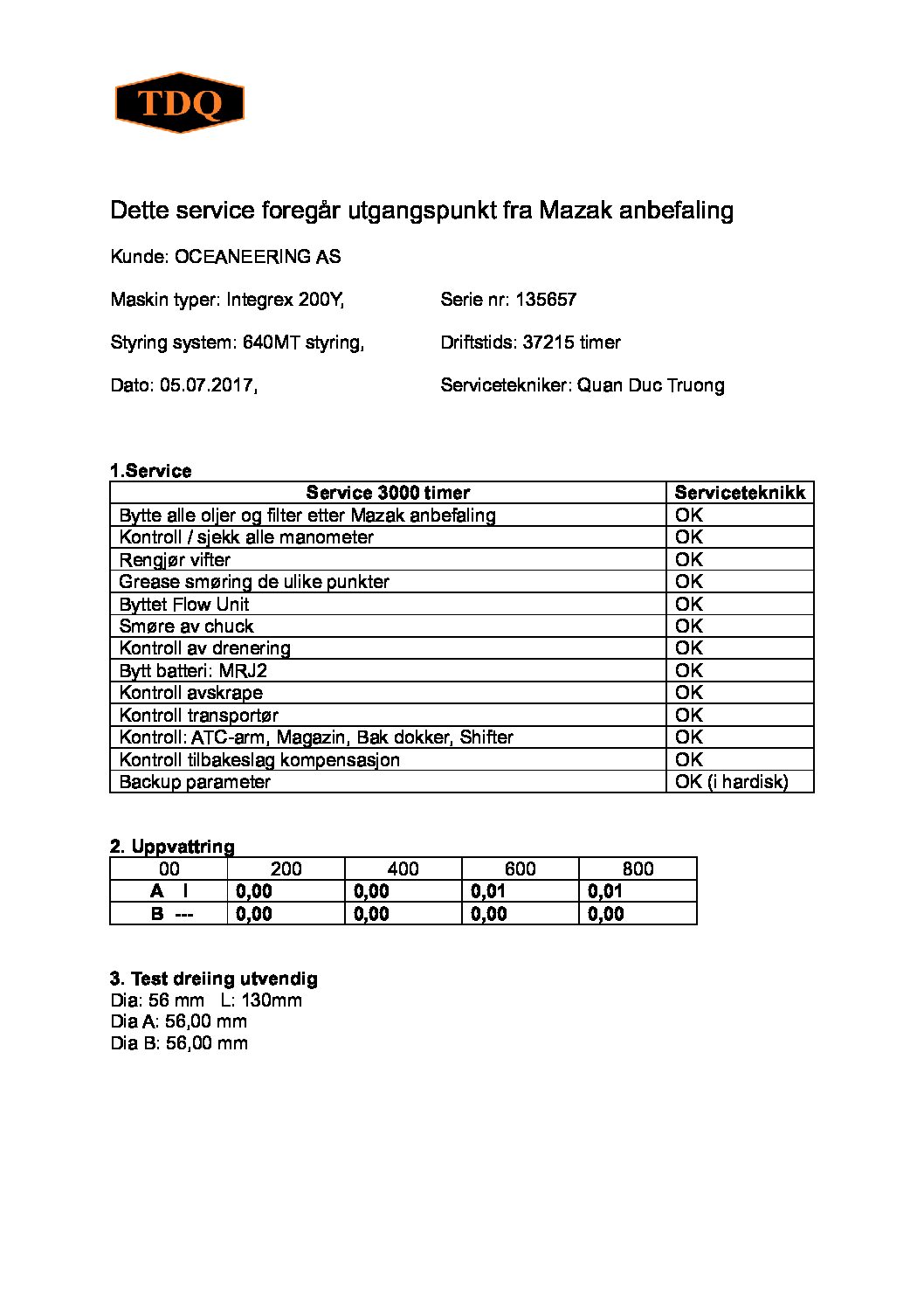

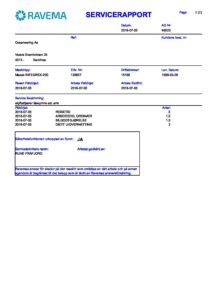

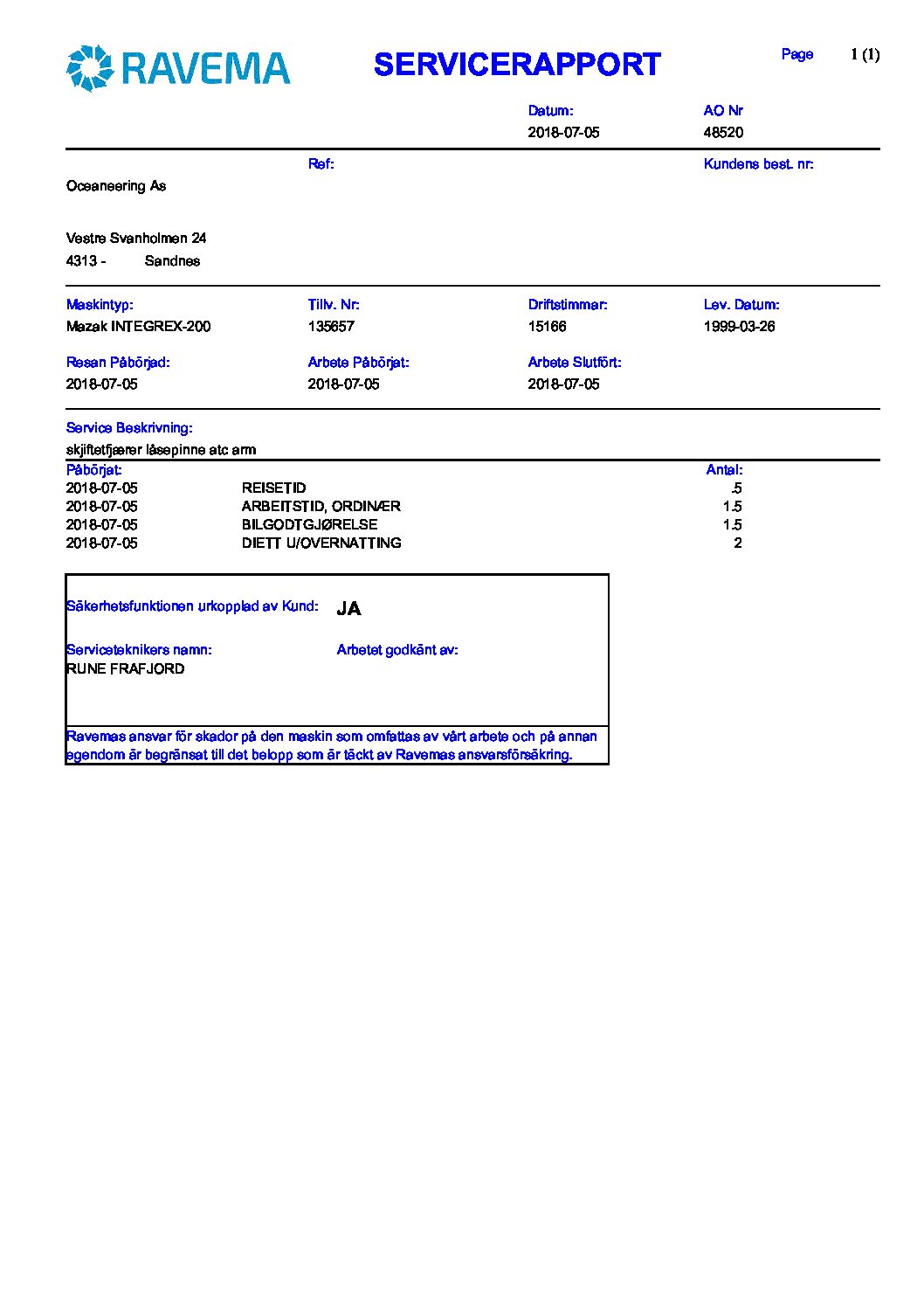

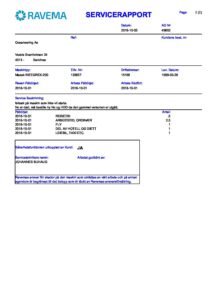

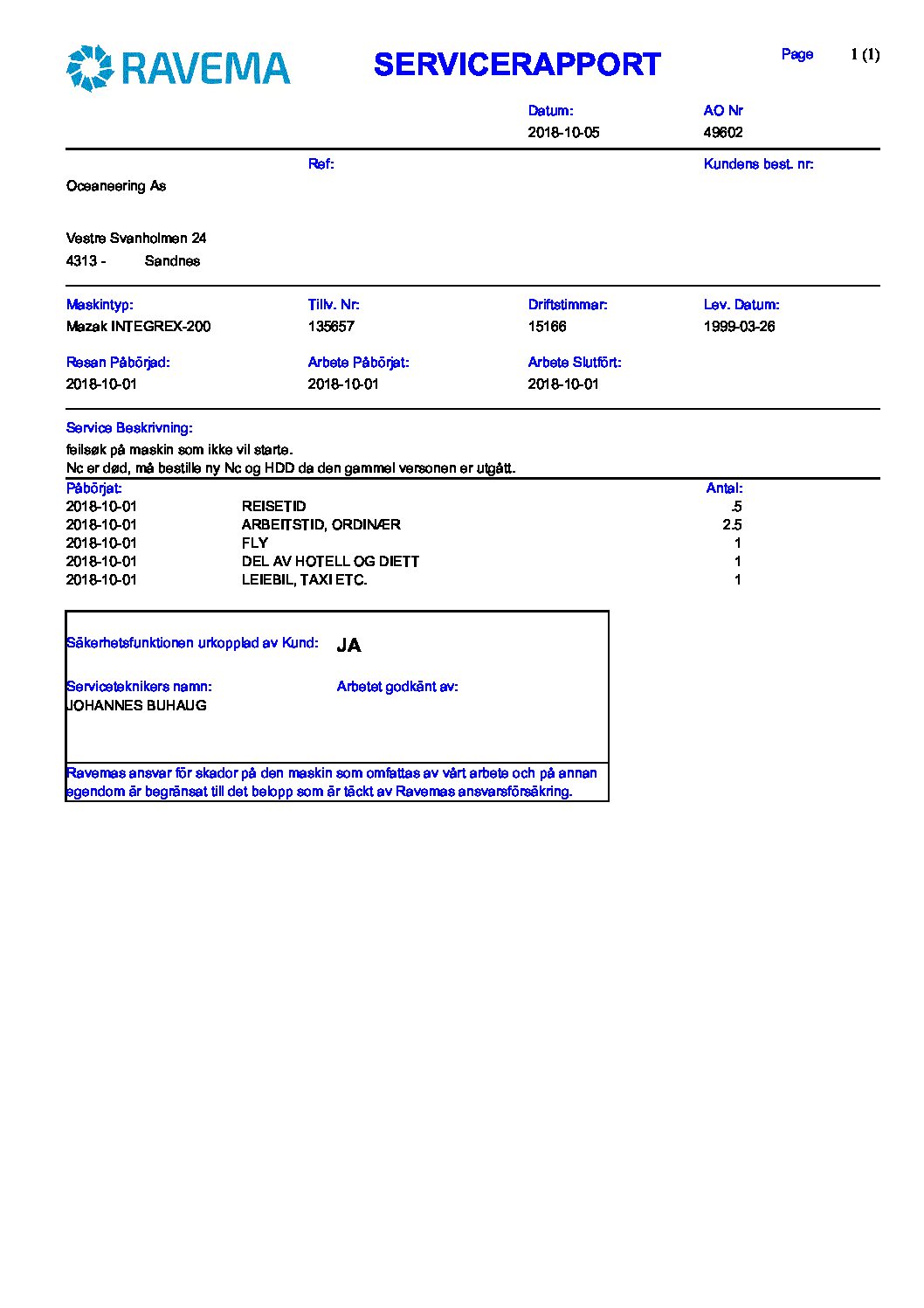

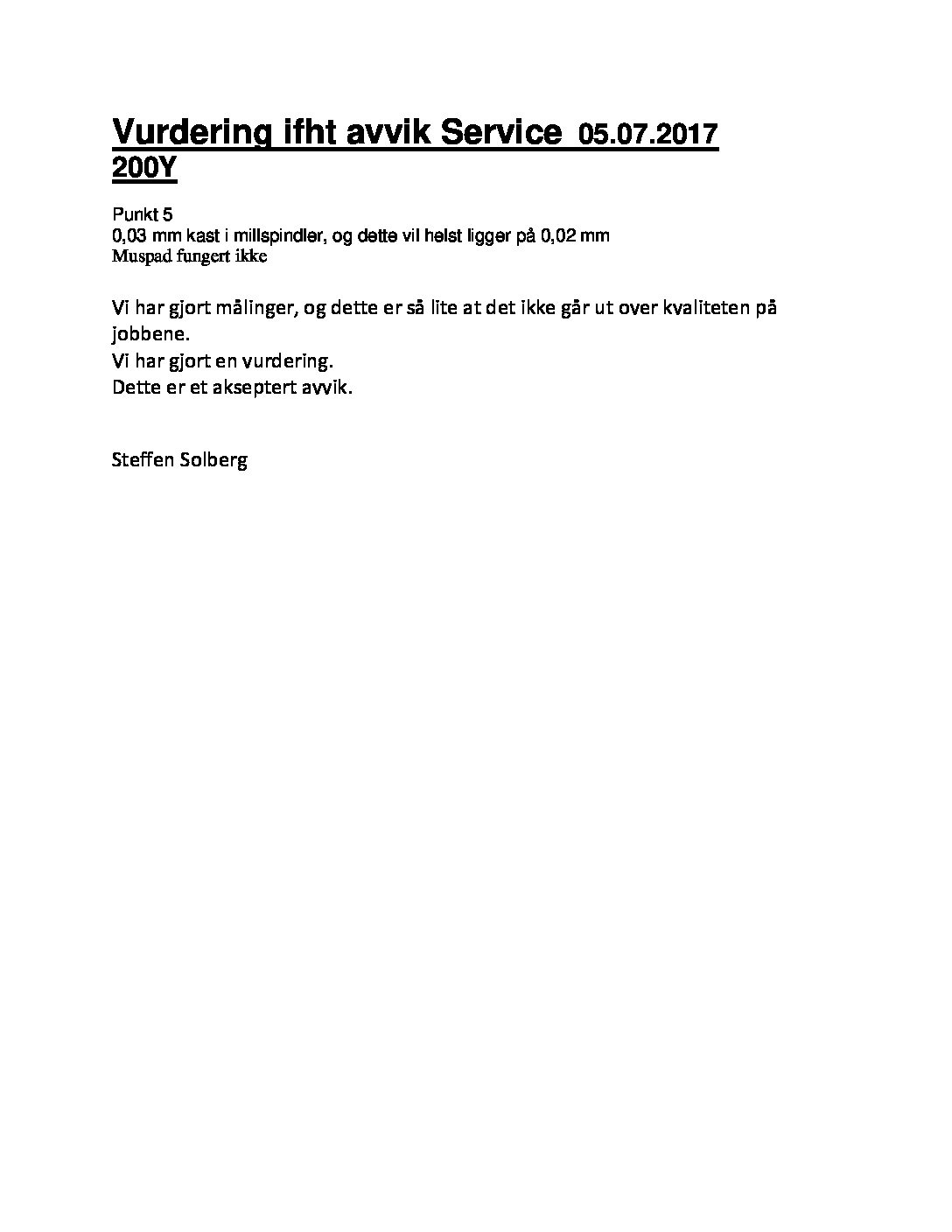

-Regularly maintained, documented from 2016 to 2021 (download attachment here)
-Shutdown after previous service, August 2021 due to unknown error code. Not located.
-Missing parameter, probably due to low or zero battery voltage after more than a 2-year shutdown
-Located at Forus in Sandnes municipality
Technical specifications:

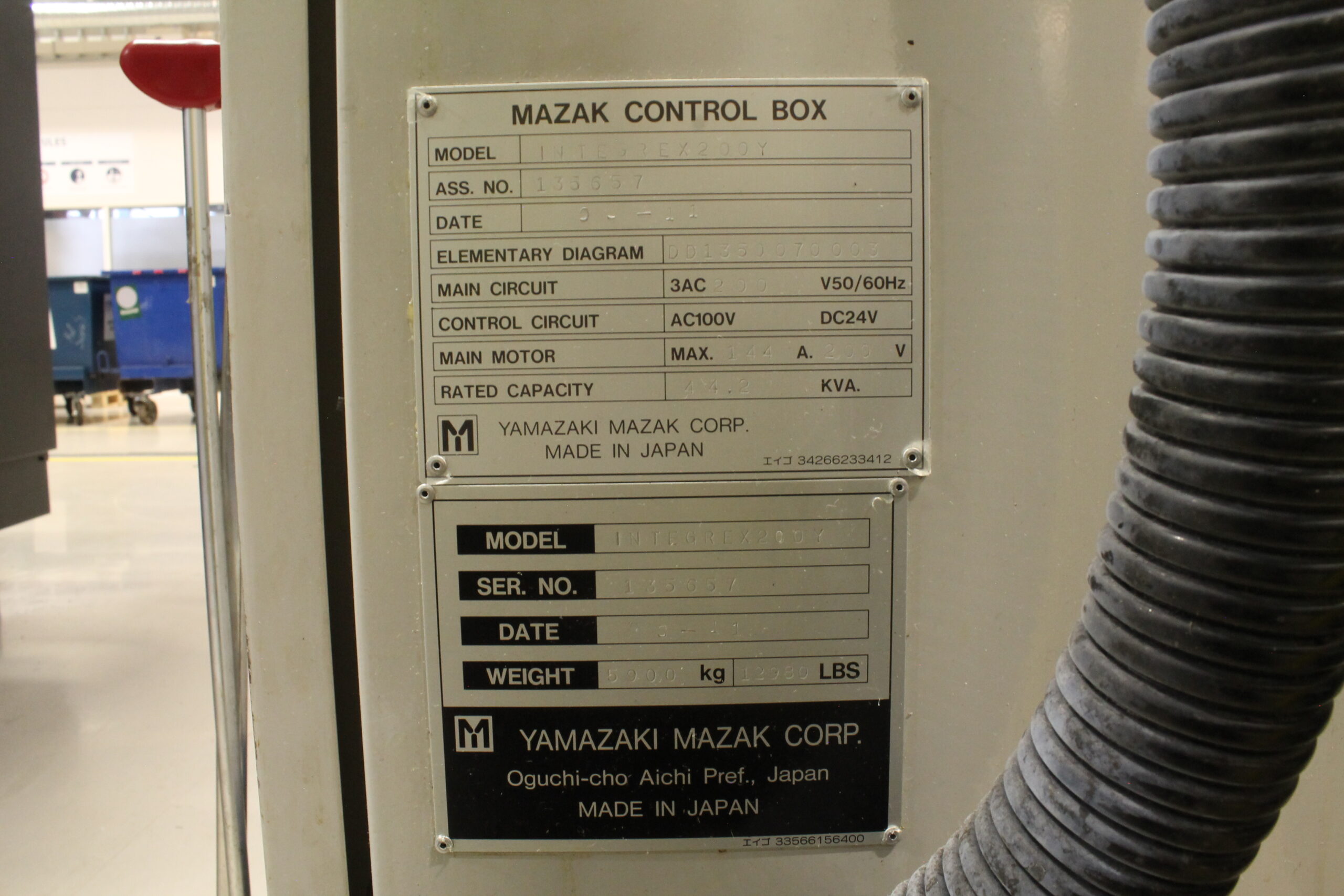

-3-Phase, 200vac @ 144A. Associated 400v - 200v transformer included
-LBH: Approx. 350x210x250cm
-Net weight: 5900kg
-Fits KM63 tool holders
-Spindle for rotary tools: 15-6,000rpm @ 7.5kw
-Main spindle: 35-5,000rpm @ 22kw
-Spindle bore main spindle: 61mm
-Travel X-axis: 530mm
-Travel Z-axis: 1065mm
-Travel Y-axis: +/-70mm
-Tailstock travel: 870mm
-Magazine capacity: 40 holders
Equipment:
-Kitagawa 8-208 turning chuck

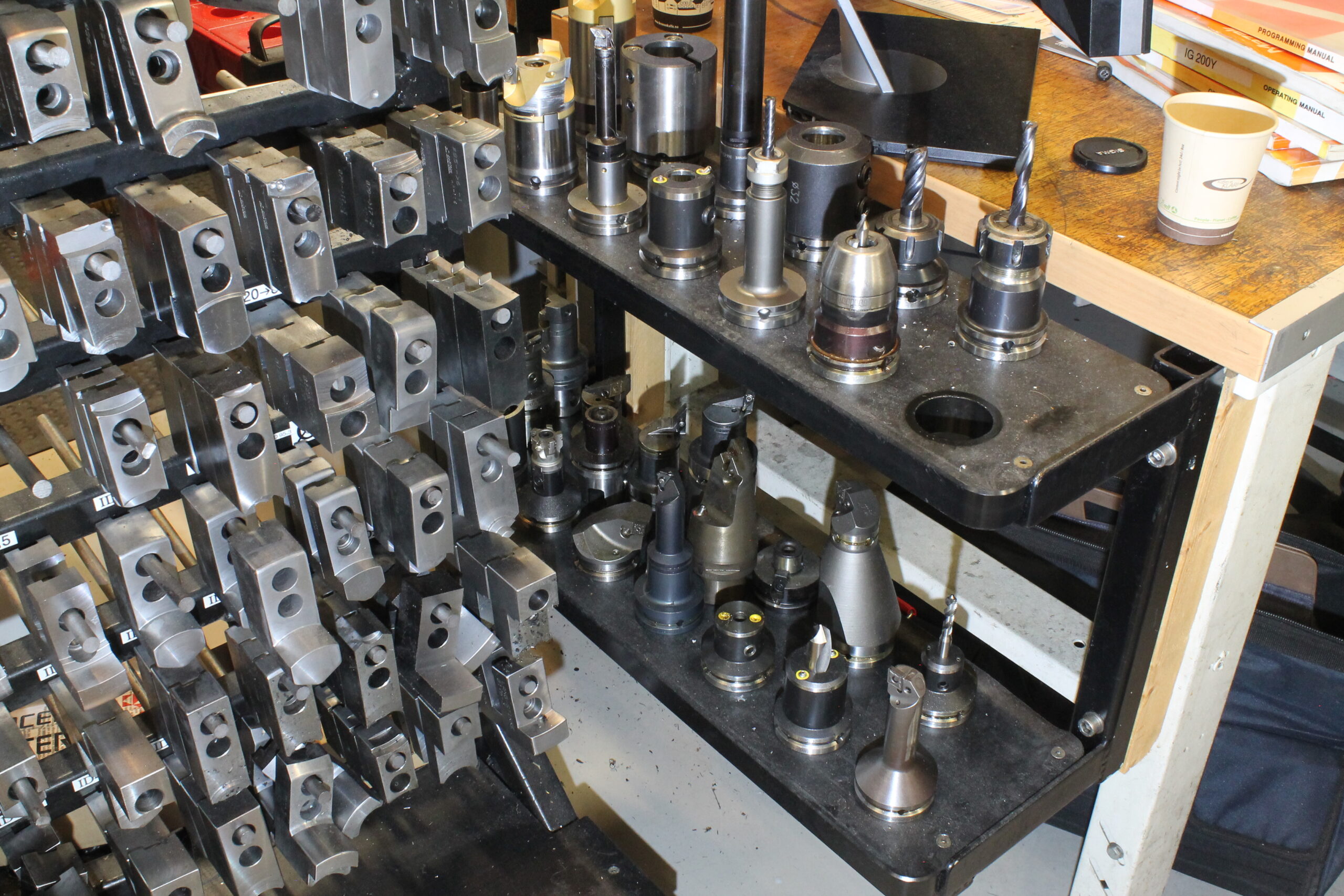

-147x set of trays for chuck

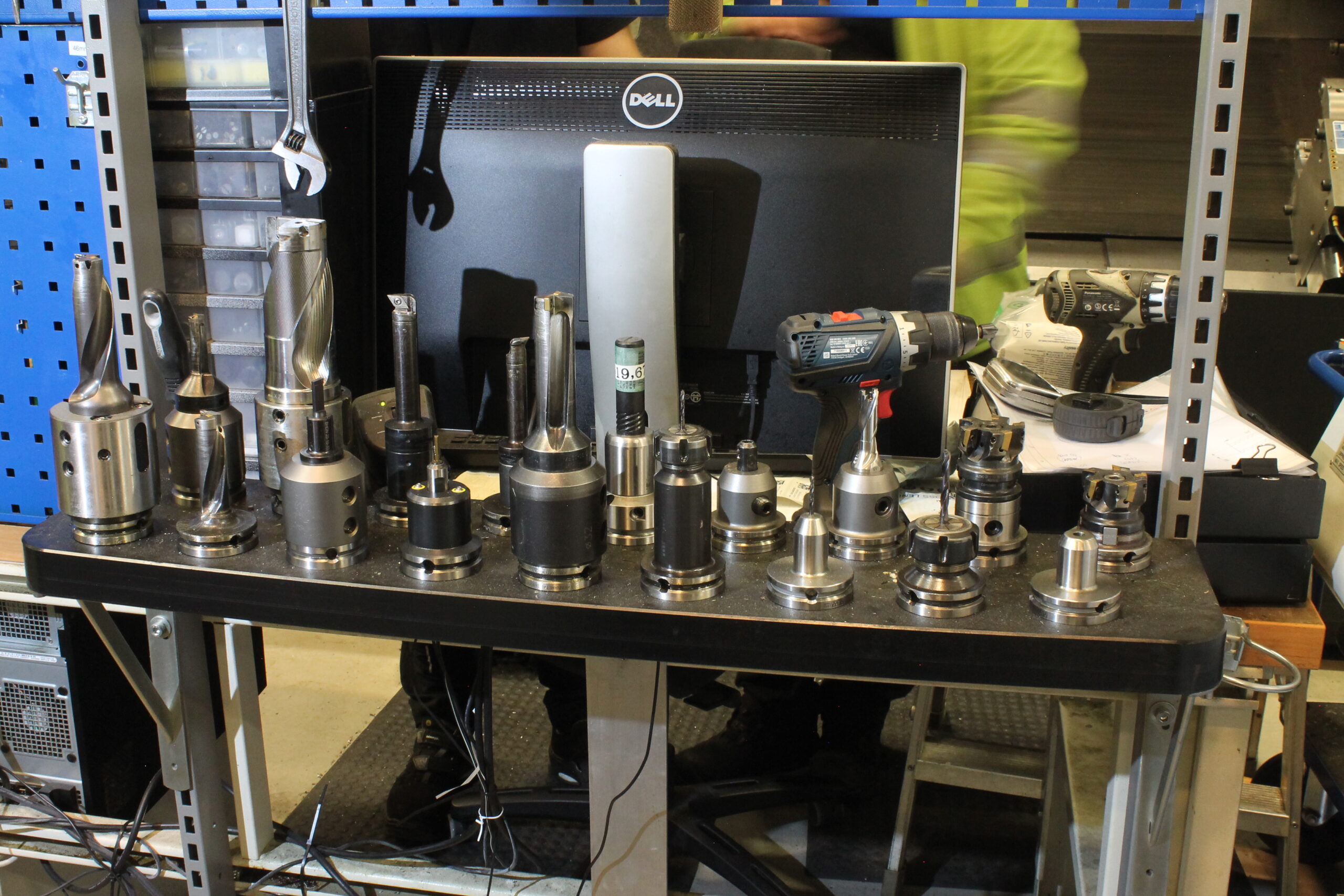

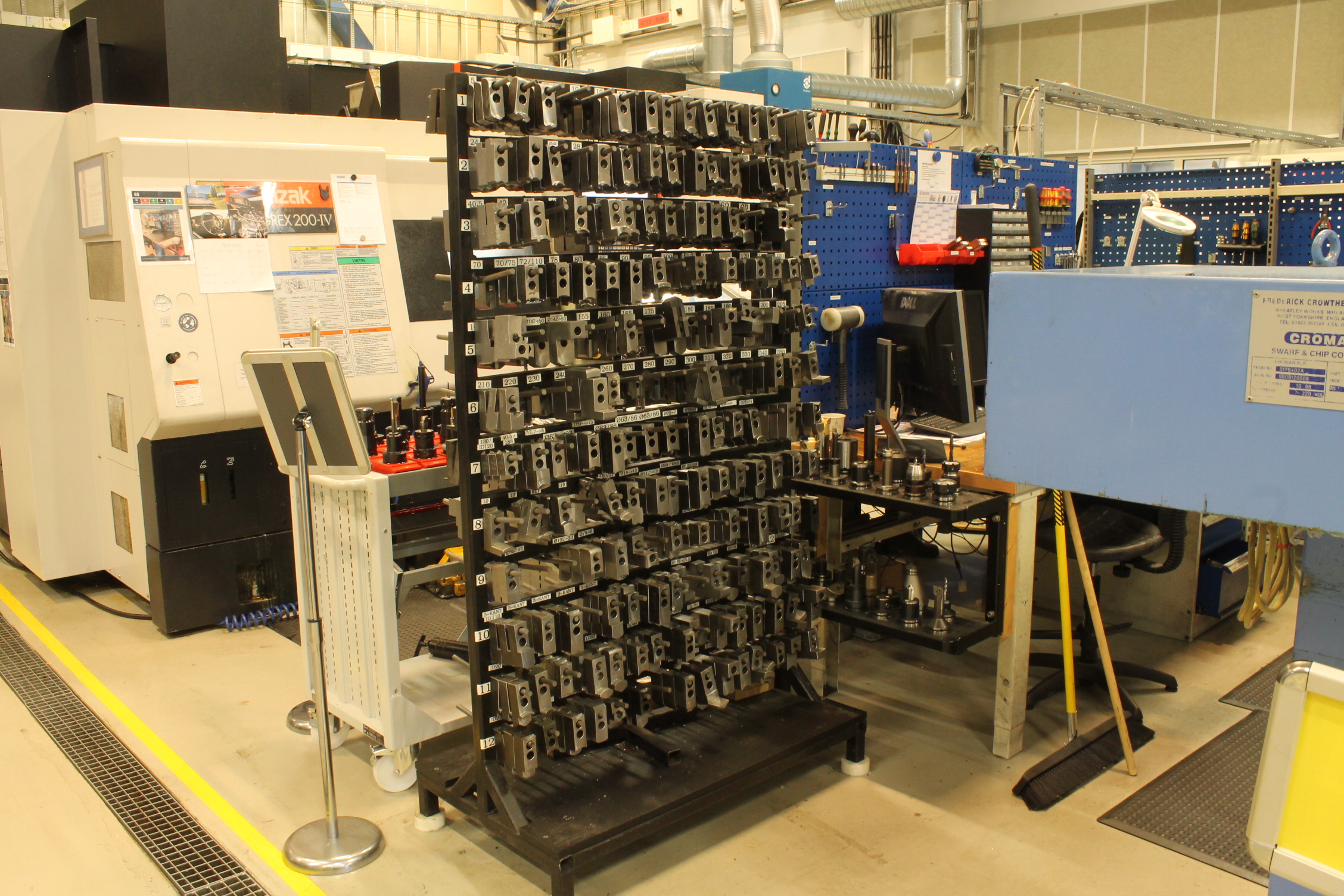

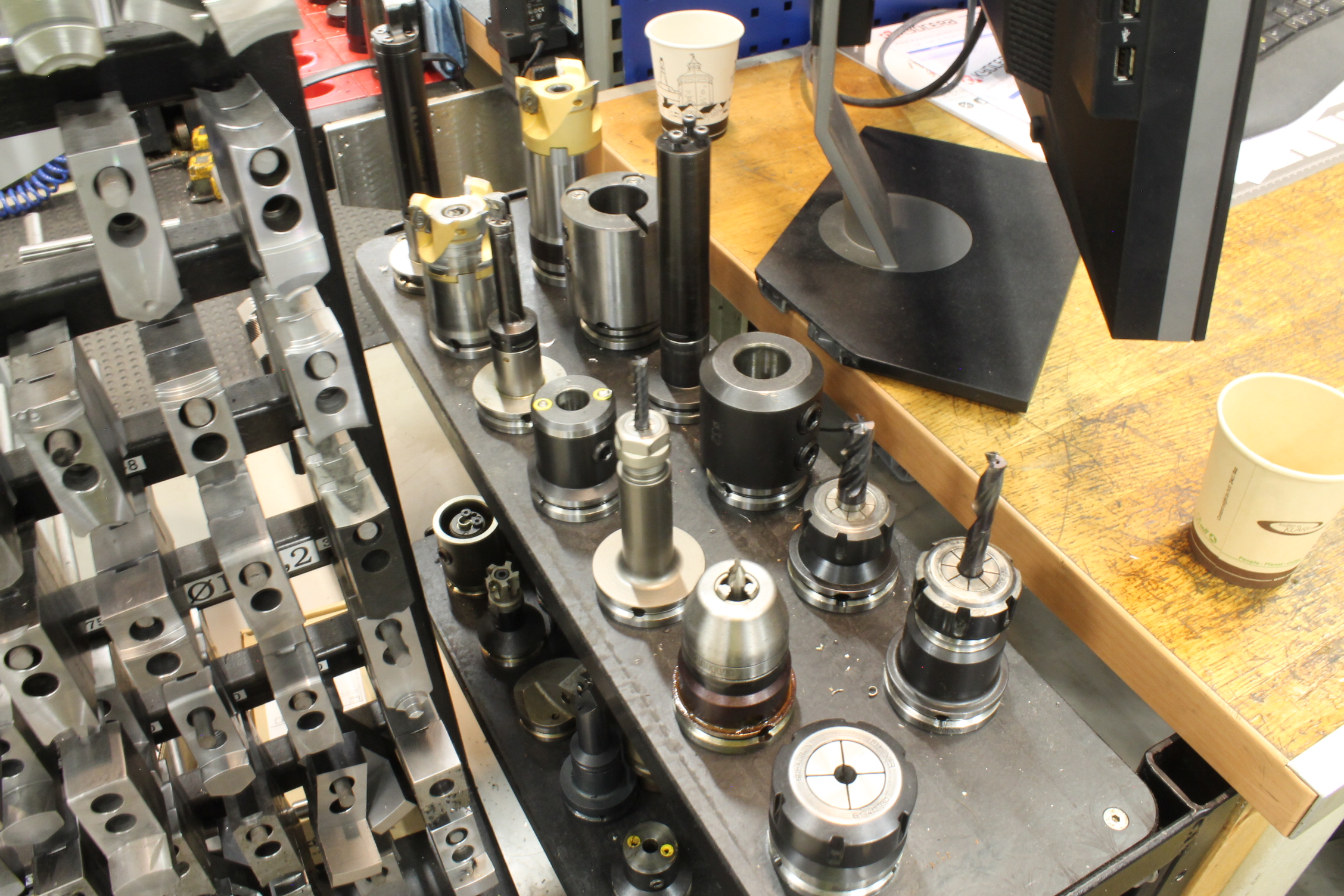

-87x KM63 Tool holders, without tools
-200vac - 400vac transformer

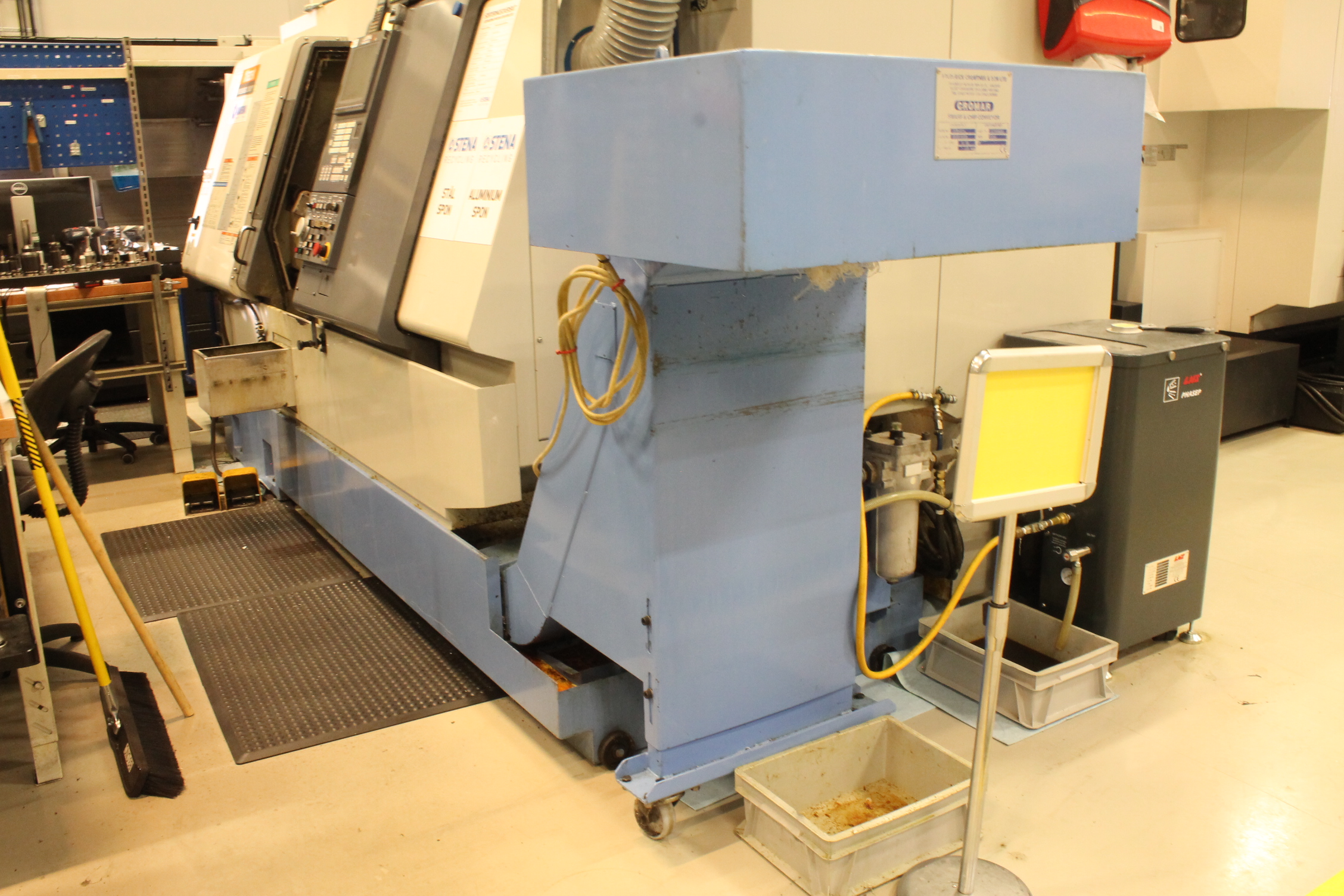

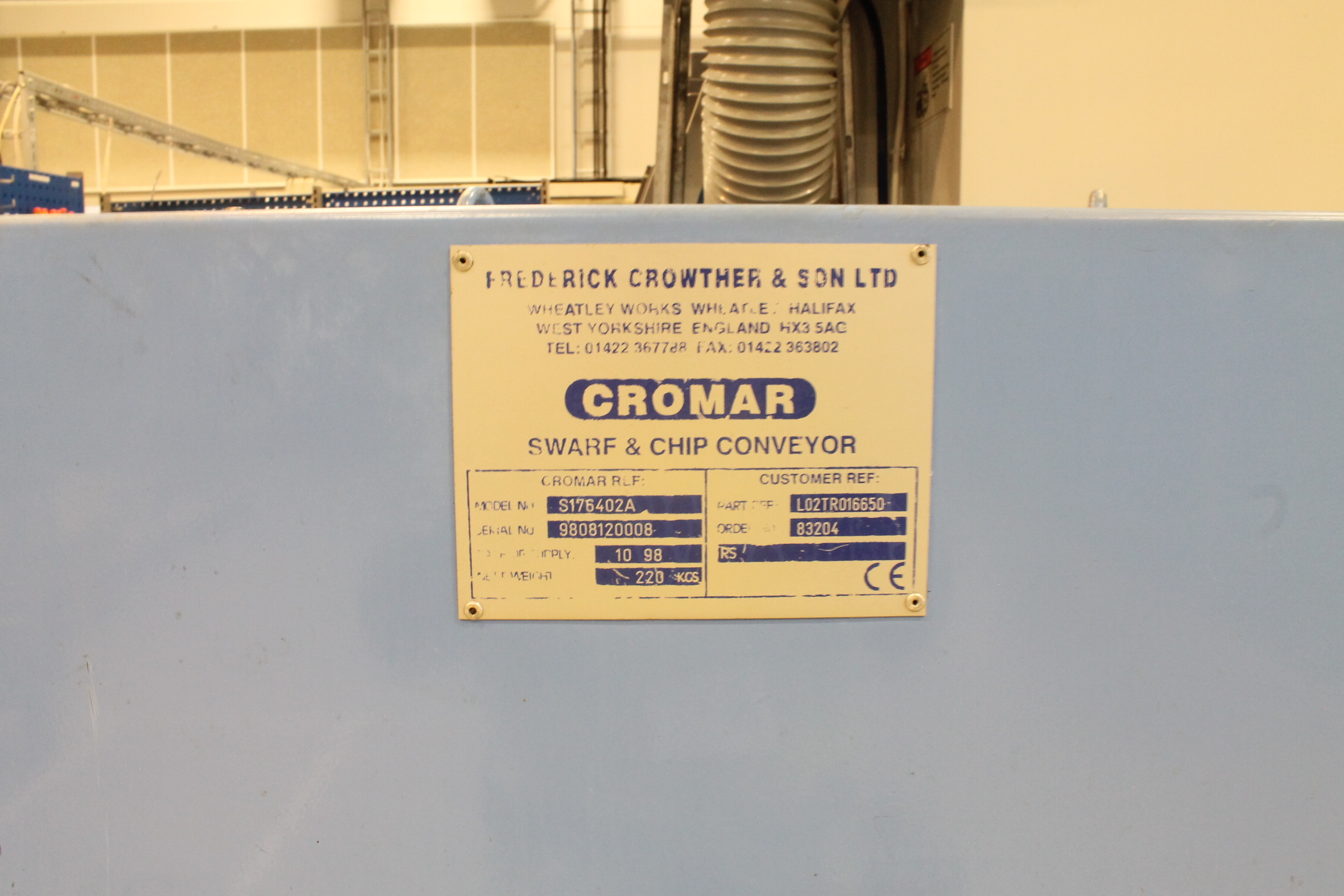

-Cromar S176240A Swarf conveyor

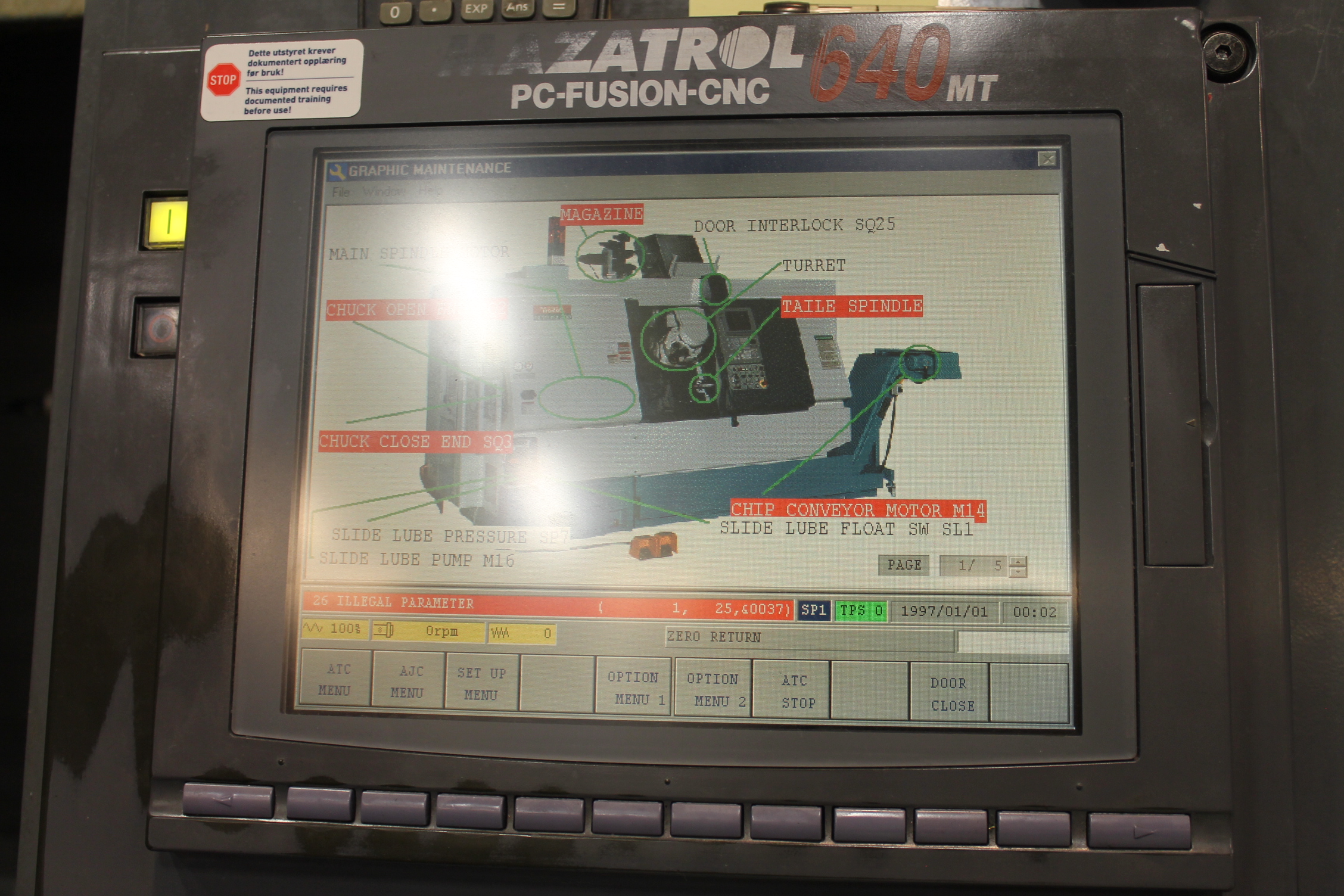

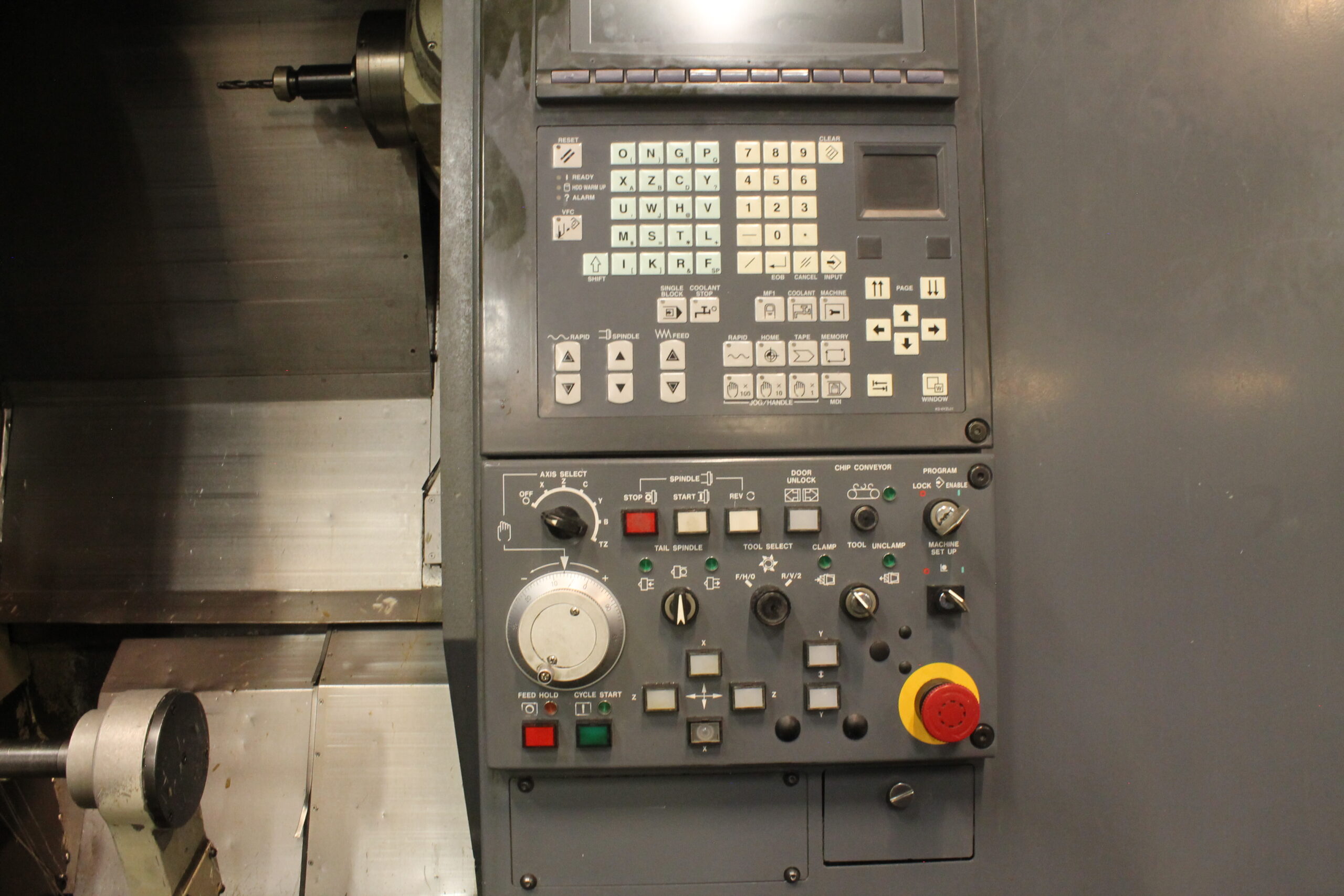

-Mazatrol Fusion 640MT (mastercam compatibility)
-Oil separator not included
